Figure in Frame, Frame in Figure

Course, Instructor
ARCH 2011, LARS SPUYBROEK
Collaborator
KAI SUN
School
GEORGIA INSTITUTE OF TECHNOLOGY
Year
FALL 2016
Site
MIAMI, FLORIDA

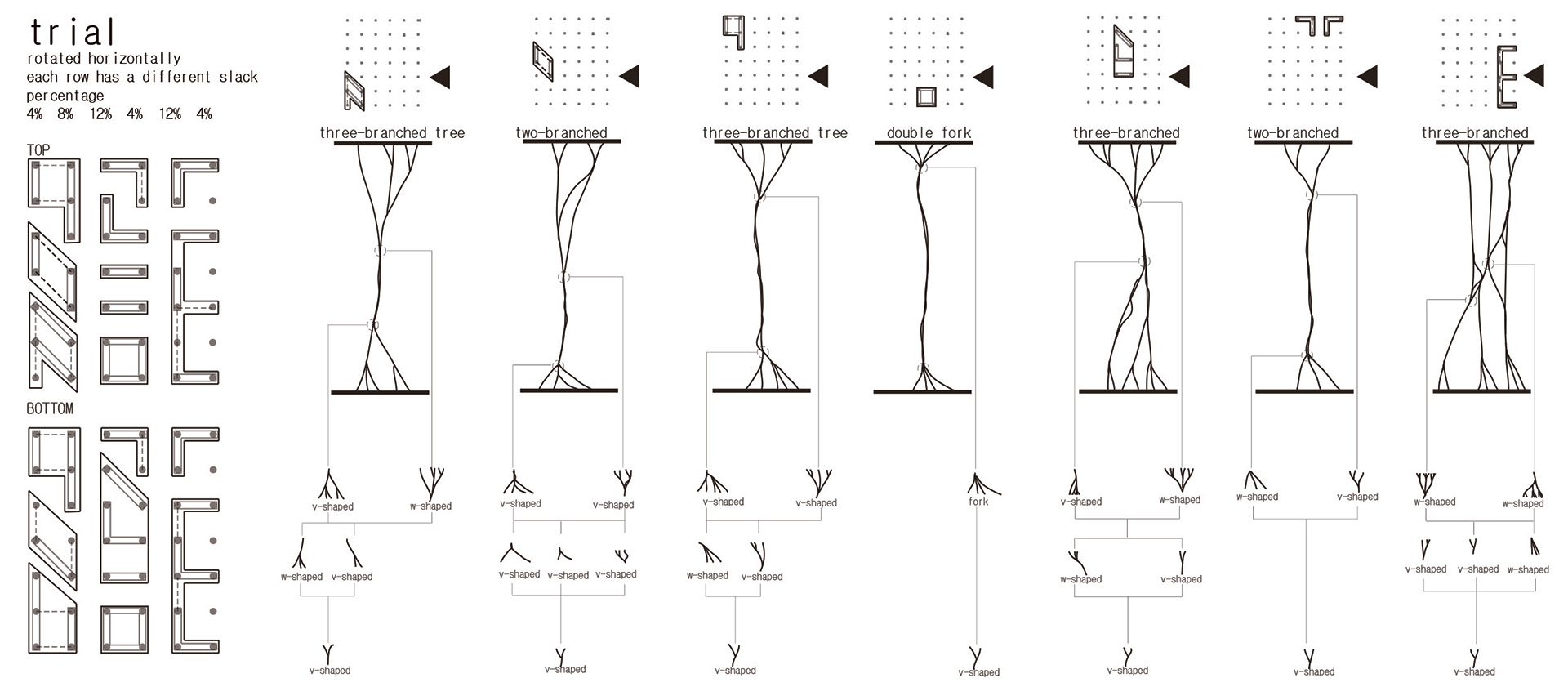

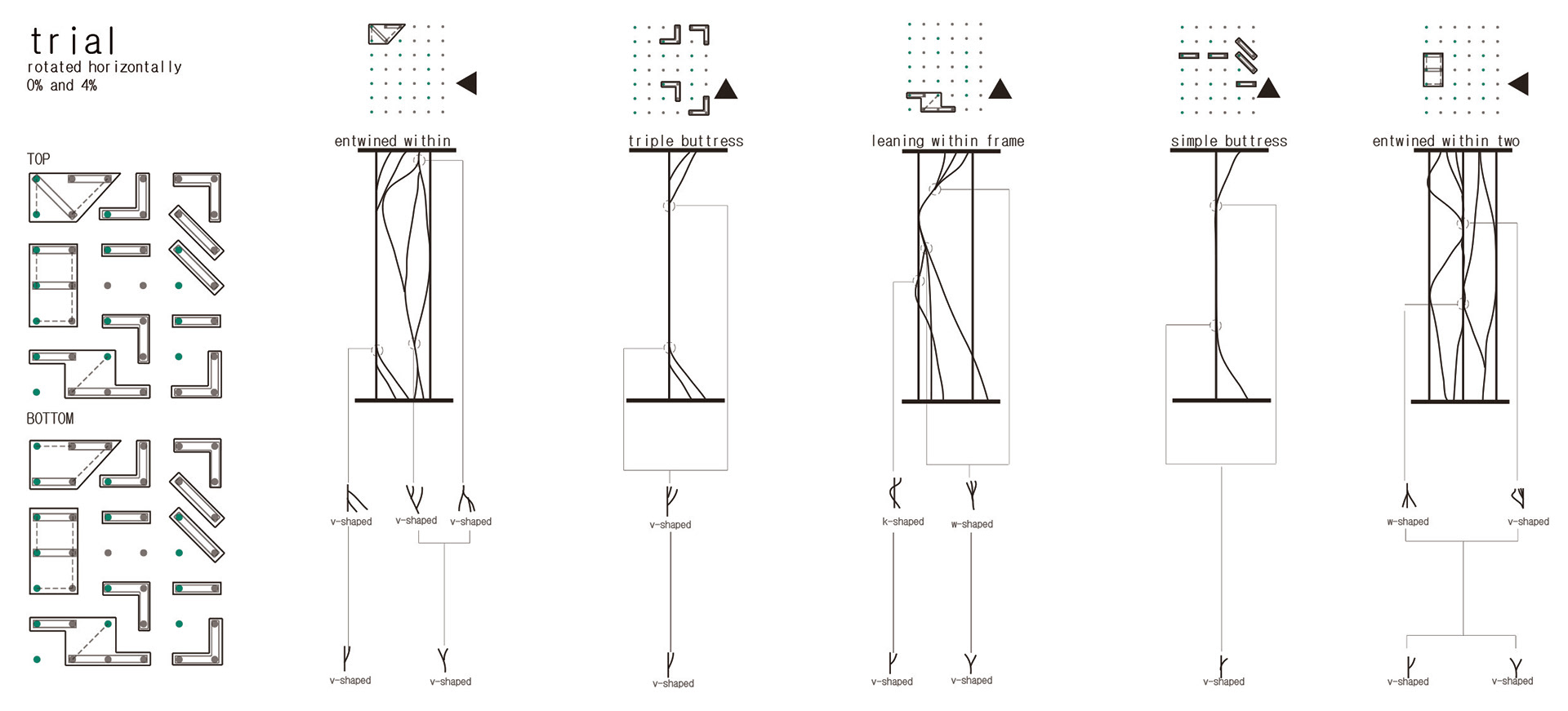

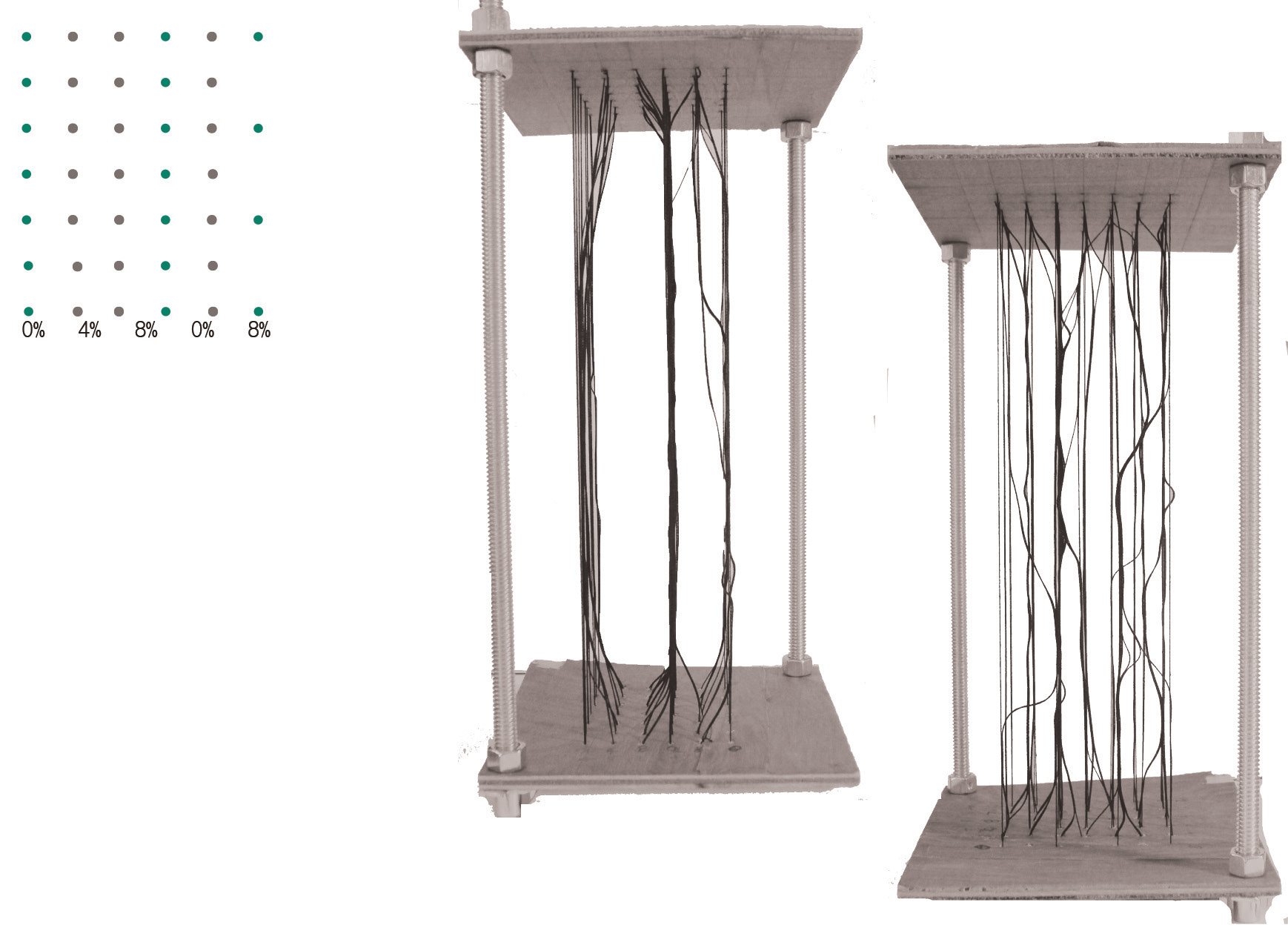

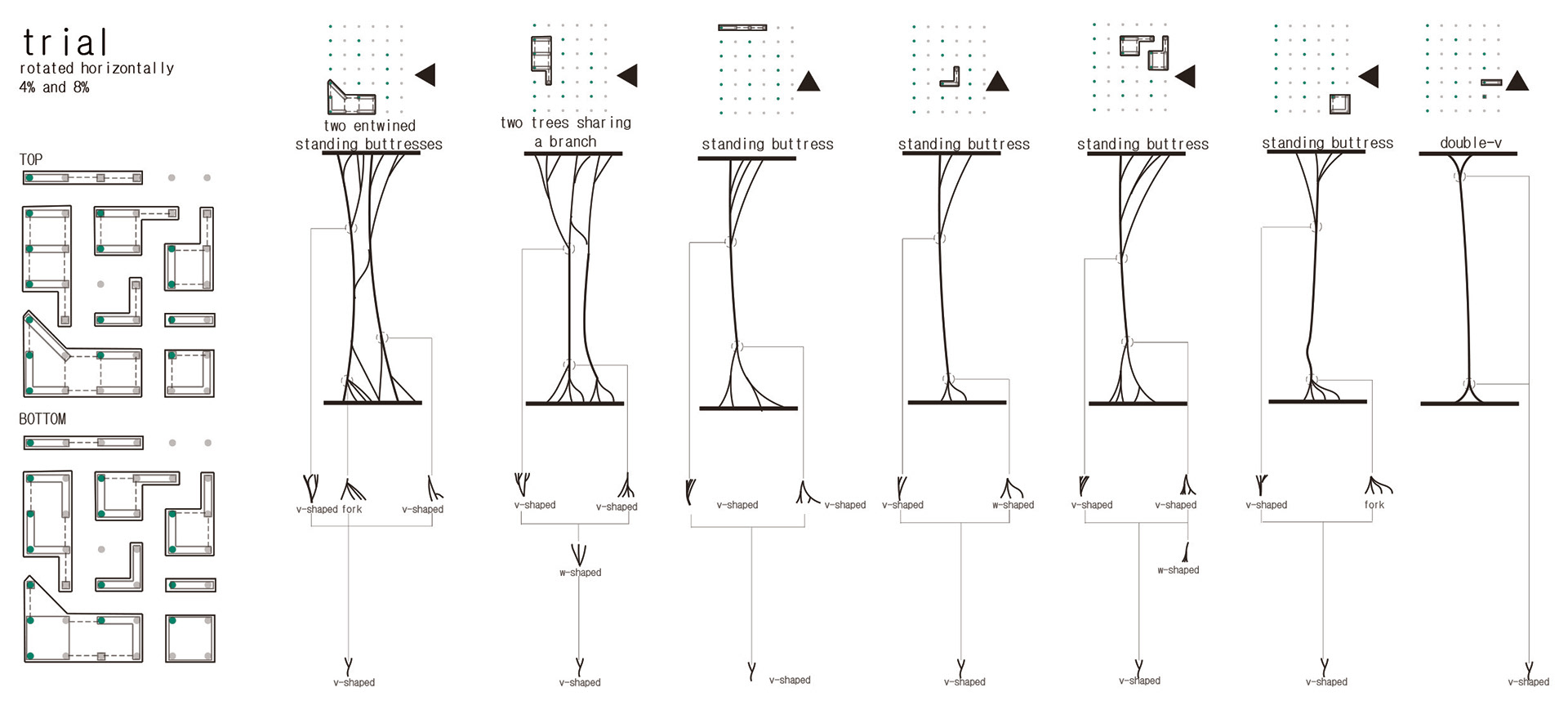

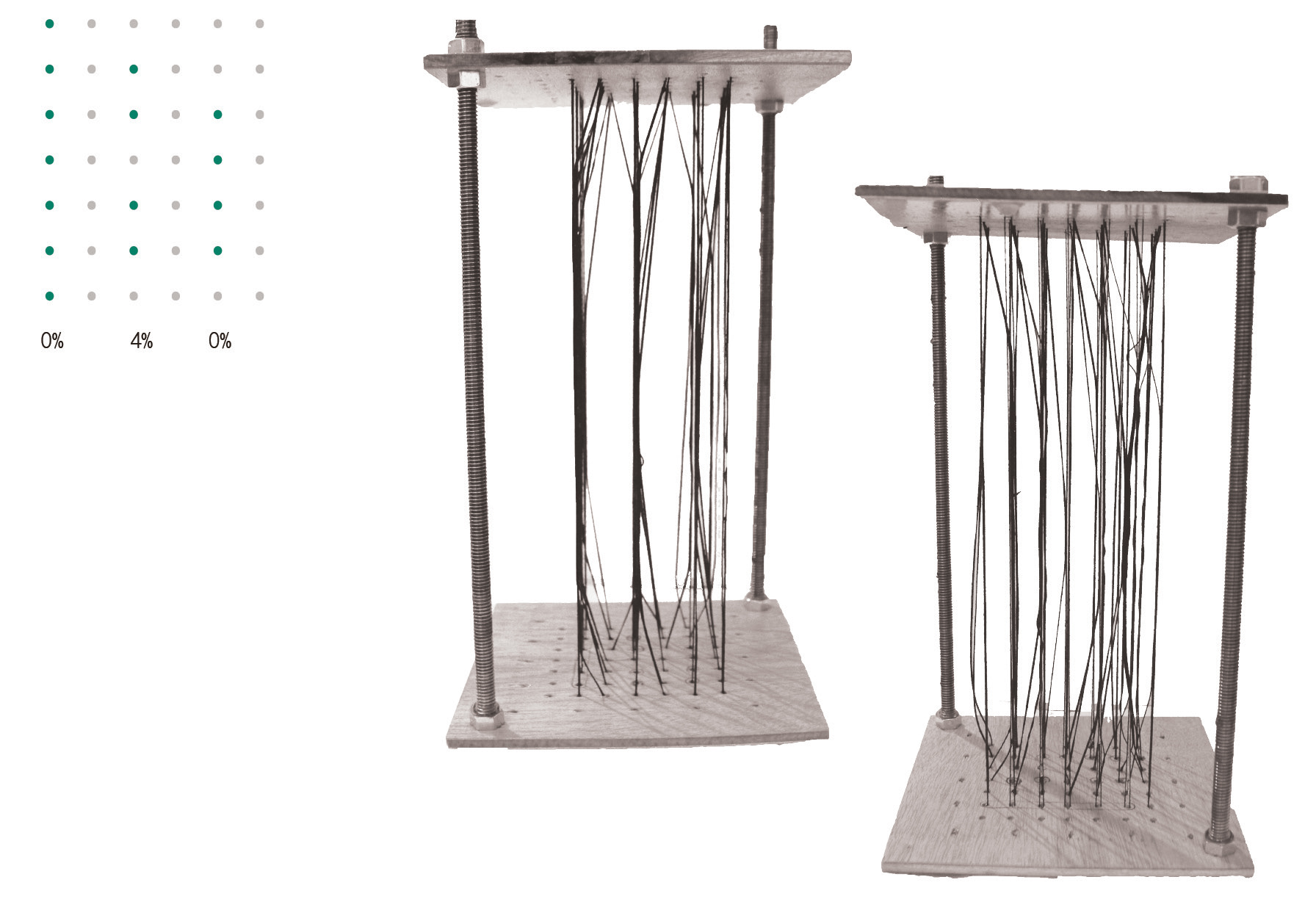

This project explores form transformation, beginning with physical string models, inspired by Frei Otto’s wool thread machine. The string models produced are based on the notion of analogue computing, which entails “input” and resulting “output” data. The “input” data involves the created top and bottom grids, which are drilled into the top and bottom pieces of wood of the string models. The string is strung through these holes with specifically chosen tensions at varying positions on the grids, represented as “slack” percentages, with 0% slack being the tightest tension. Also included in the “input” data would be the dipping techniques of the string models. These models are dipped into a tub of water, rotated under water, and pulled out in a particular manner. The “output” data, then, would be the forms in which the strings cling together to create unique spatial compositions. This “out-put” data is acquired by photographing and sketching the models immediately after pulling them out of the water, to retain the information of the wet strings.

Studies of the resulting language of these string models translate into more rigid physical models made of wood, chipboard, and acrylic.

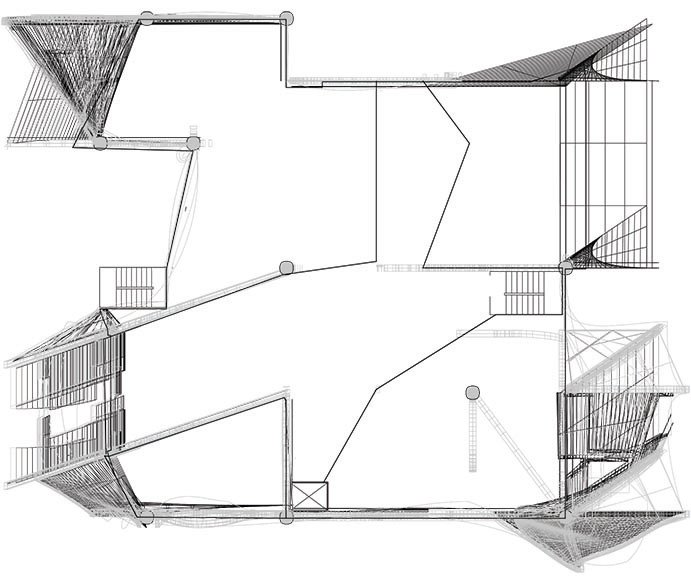

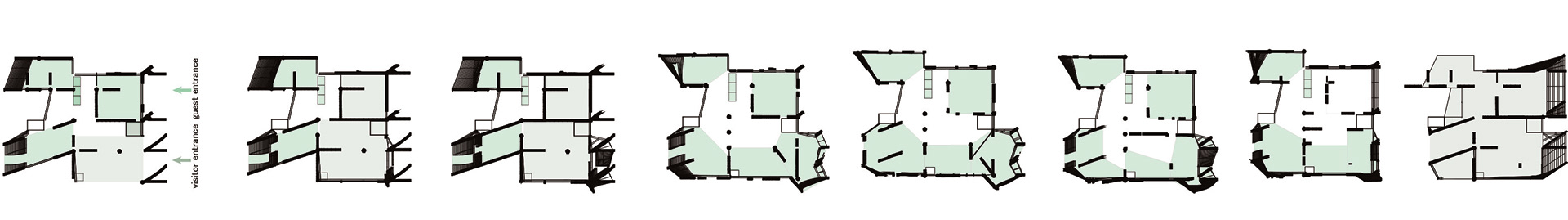

Elements are pulled out of these model-making experiments and are carried into the design of the building. Conceptually, the form of the resulting building can be described as dynamic, fluid form that is “frozen” into a solid structural entity.

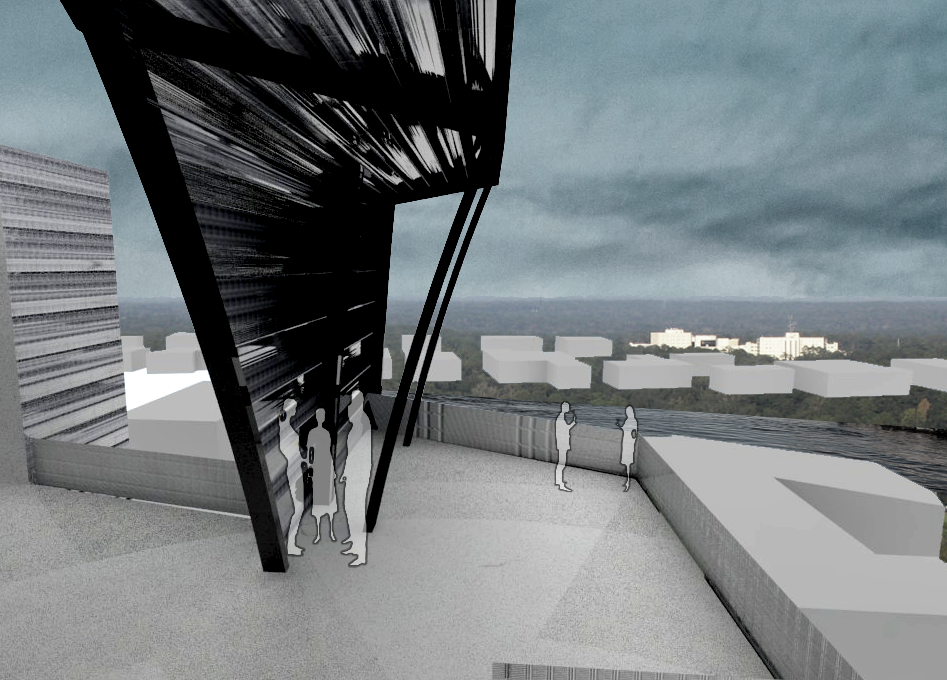

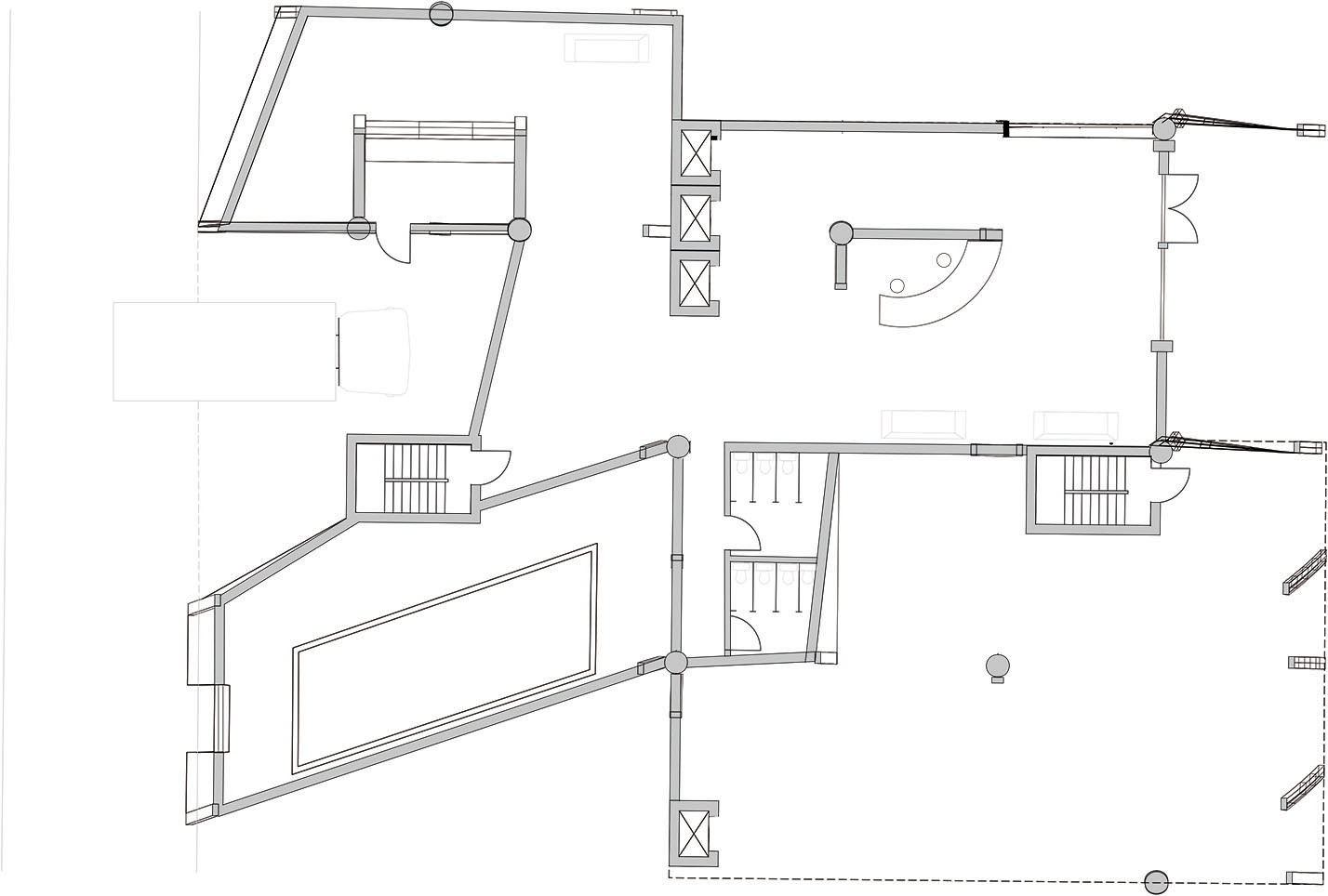

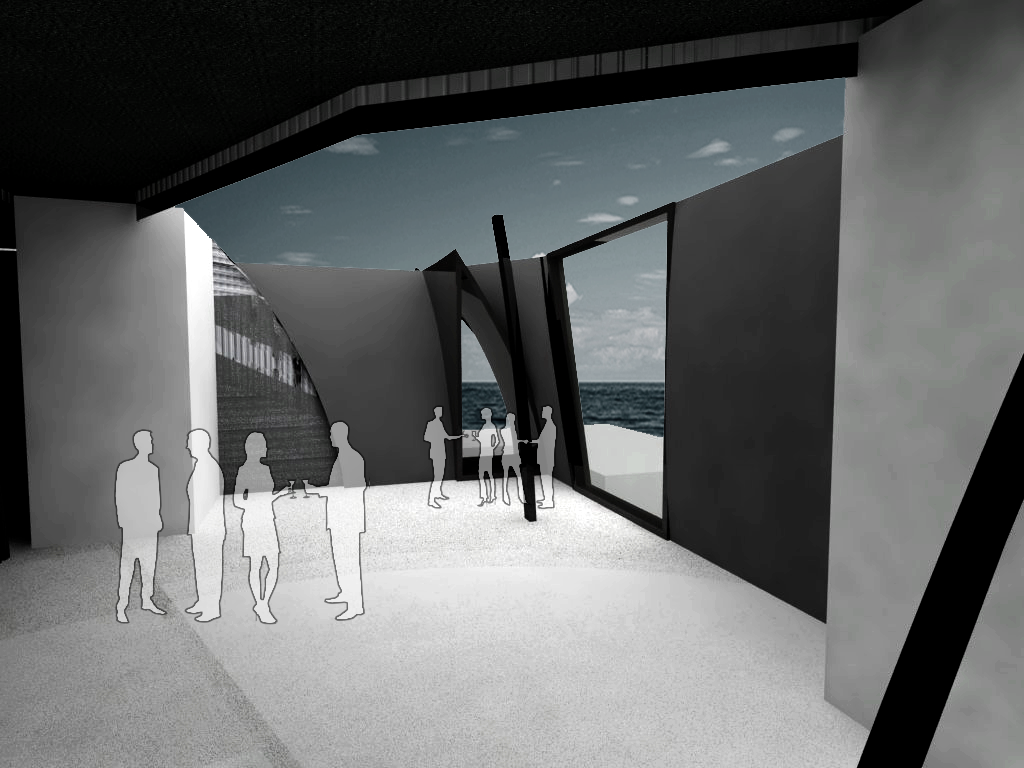

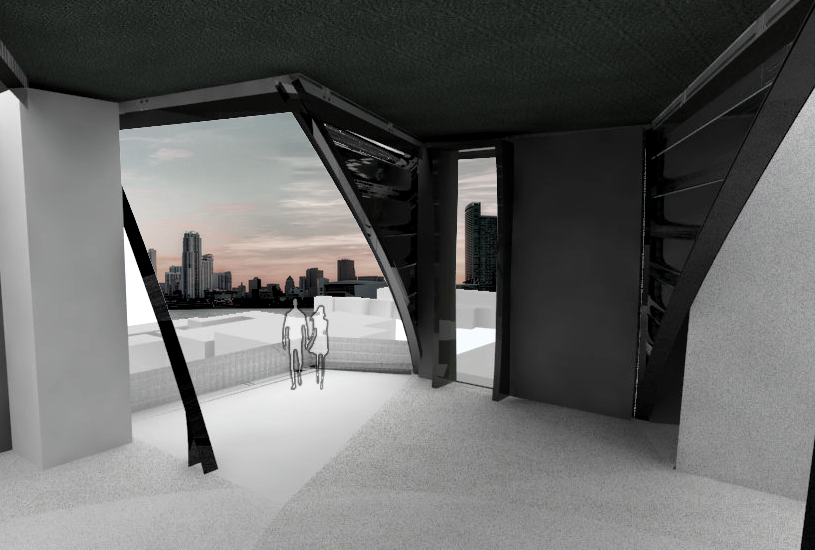

The proposed building is a luxury boutique hotel in Miami, Florida and aims to be a new visionary concept of what architecture can be.

01 - Work by Suzanne Shorrosh

02 - Collaborative Team Work
